Container Specifications

The following guide shows the different types of shipping containers that can be used as a starting point for determining your shipping requirements.

Note:  Exact dimensions can differ slightly due to manufacturer, and load regulations may restrict operation to less than maximum weight. Use this information as a guide only.

  Container Type Internal Dimensions
(L x W x H)
Door Opening
(W x H)
Cubic Capacity Cargo Weight

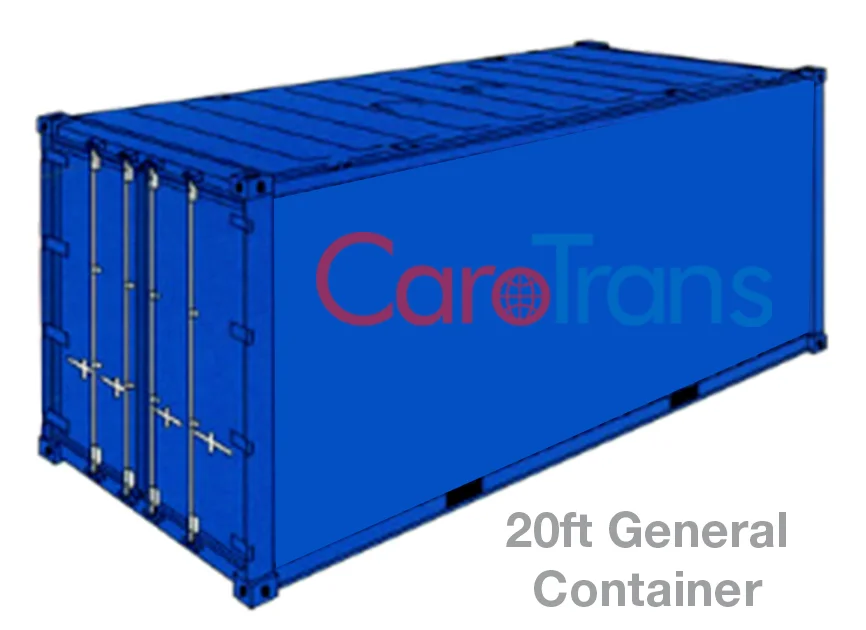

20FT General 5.89 x 2.35 x 2.36m 2.33 x 2.26m 33m³ 21,700kgs
20FT High Cube 5.89 x 2.35 x 2.69m 2.33 x 2.59m 37m³ 21,700kgs
40FT General 12.05 x 2.35 x 2.36m 2.33 x 2.26m 66m³ 26500kgs
40FT High Cube 12.05 x 2.35 x 2.69m 2.33 x 2.59m 76m³ 26500kgs

Notes -

  • Heavy Rated shipping containers which support a heavier load are available, additional surcharges may apply
  • Food Grade shipping containers for carrying foodstuffs are available, additional surcharges may apply
  • A 20FT High Cube shipping containers (higher height that standard) are only available for designated origin/destination pairings
  • Additional charges may apply for High Cube containers
  Container Type Internal Dimensions
(L x W x H)
Door Opening
(W x H)
Cubic Capacity Cargo Weight

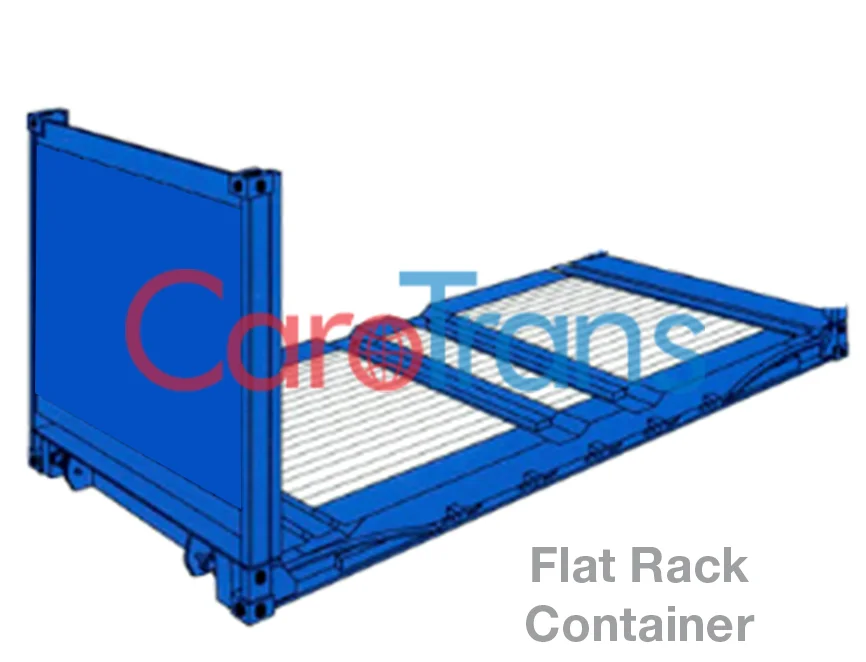

20FT Flat Rack
with sides
5.89 x 2.35 x 2.23m Side Opening
W - 2.59m
30m³ 26500kgs
20FT Flat Rack
without sides
6.00 x 2.35 x 0.23m   33m³
Max Height 2.36m
23500kgs
40FT Flat Rack
with Sides
12.05 x 2.35 x 2.23m Side Opening
W - 11.66m
63m³ 3600kgs
40FT Flat Rack
without sides
12.20 x 2.35 x 0.65m   67m³
Max Height 2.36m
39000kgs

Notes -

  • This shipping container is used for over-dimensional (out of gauge) cargo. It is available with or without sides
  • Survey reports may be required when shipping out of gauge cargo
  • If out of gauge additional surcharges will apply
  • Flat Rack containers are subject to availbility and additional surcharges will apply
  Container Type Internal Dimensions
(L x W x H)
Door Opening
(W x H)
Cubic Capacity Cargo Weight

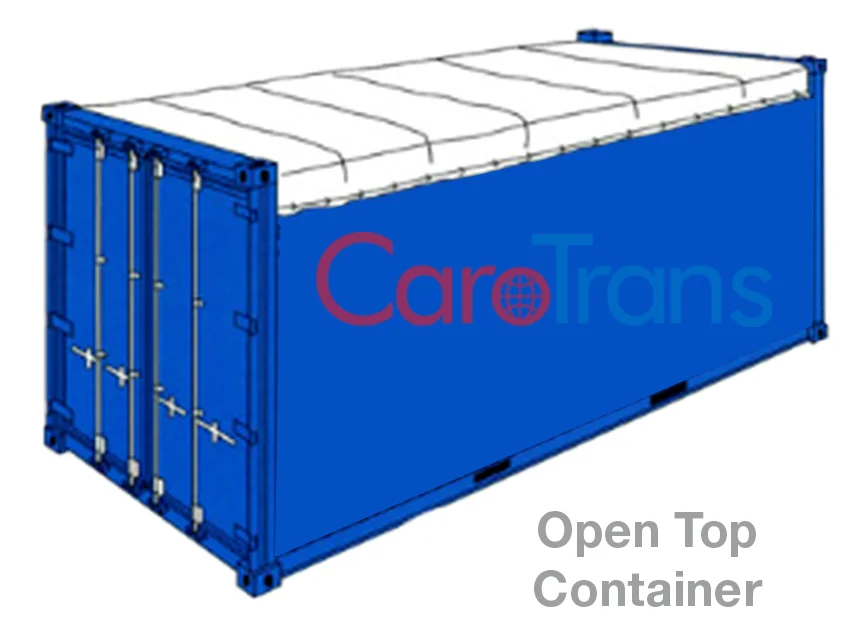

20FT Open Top 5.89 x 2.35 x 2.36m 2.33 x 2.29m 32m³ 21700kgs
40FT Open Top 12.05 x 2.35 x 2.36m 2.33 x 2.29m 66m³ 26500kgs

Notes -
  • Open top containers allow you to load over height cargo or allows easier loading by crane
  • If out of gauge additional surcharges will apply
  • Open Top containers are subject to availbility and additional surcharges will apply

  Container Type Internal Dimensions
(L x W x H)
Door Opening Cubic Capacity Cargo Weight

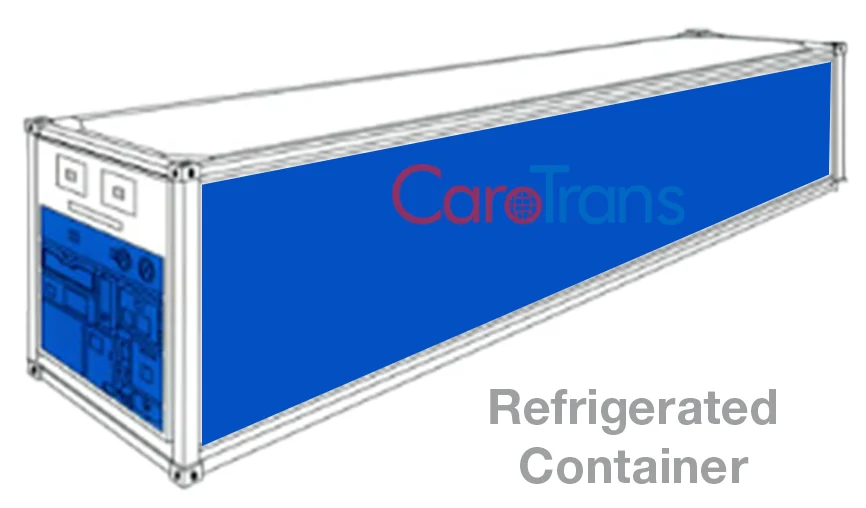

20FT Reefer 5.44 x 2.26 x 2.24m 2.26 x 2.20m 27m³ 21700kgs
40FT Reefer 11.55 x 2.26 x 2.24m 2.26 x 2.20m 58m³ 25000kgs

Notes -
  • Refrigerated shipping containers can be set at a required temperature for the duration of the voyage
  • Commonly used for food/dairy products
  • The smaller dimensions are due to thicker walls
  • Reefer containers are subject to availbility and additional surchrges will apply

In New Zealand there is a general 30 tonne road weight limit for containers and their cargo combined (i.e. gross weight) If gross weight will exceed this amount, approval and additional permits may be required.
